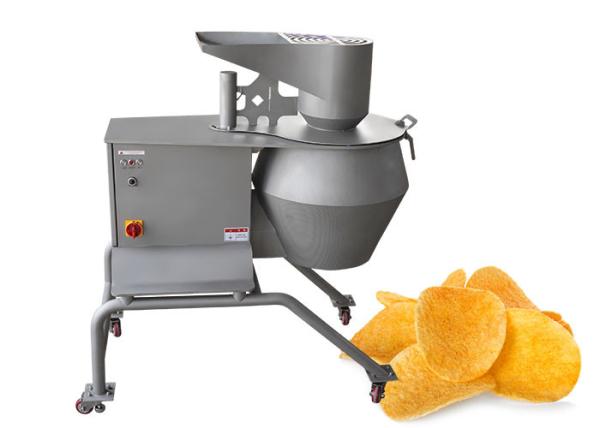

High Speed Potato Chips Cutting Cyclones Cutter With 16 Units Small
Balde
TJ-400T Cutting Principle:
- The product is fed through the infeed chute and enters the rotating
impeller.
- Centrifugal force pushes the product against the inside of the
stationary cutting head where the impeller paddles guide it through
each of the 16 cutting stations.
- Slices or shreds are produced as the product passes each knife in a
smooth and uninterrupted manner. Length is determined by the input
product size. The biggest raw material diameter: 90mm
- The interchangeable cutting heads offer flexibility in different
cut shapes and sizes, for cutting slices as well as shreds.
- Large infeed provides uniform product flow to the cutting head and
avoids over loading of the head
Application: Apple, Papaya, Lemon, Orange, Potato, Green beans, Beetroot -
White, Bamboo shoot, Brussels sprouts, Carrot, Celeriac, Fennel,
Ginger, Kiwi, Mushroom, Maize - Corn, Onion, Radish - Horseradish,
Shallot, Tomato etc.
Widely used in fruit and vegetable processing plants, central
kitchens, catering chain distribution centers, and canteens of
institutions.
Feature:
- TJ-400T is the new reference for great cut quality in different
shapes and sizes.
- One cutting head with 16 cutting station, high yield.
- This machine is available as a stand-alone machine.
- Food and operator safety is a priority for the TJ-400T
- This machine is easy in maintenance and use, resulting in a very
low operating cost.
- A reliable and low-maintenance direct drive system instead of an
expensive, high-maintenance gearbox.
Specification:
| Item | Potato Shredder Slicer Cutting Machine |
| Model | TJ-400T Shredder | TJ-1500D Dicer Machine |
| Material | SUS 304 stainless steel | SUS 304 stainless steel |
| Dimension | 1350*800*1510mm | 1750*1250*1600mm |
| Power | 1.5KW | 2.85KW |
| Net Weight | 350KG | 285KG |
| Production Capacity | 1000-3000kg/h | 1000-3000kg/h |
| Packing | Standard Export package By Wooden case | Standard Export package By Wooden case |
Advantage:
- 16 Cutting station
- Self-locking head
- Quick clamping
- Inexpensive disposable knives
- Adjustable slice gate
- Grooved impeller
- Uniform and accurate slices
Questions and Answer
Q: What materials does the vegetable cubing machine can cut?
A: Root Veg (poato, carrot, onion, parsnip etc.) & fruit (pineapple,
mango, apple, kiwi etc.) & leaf (cabbage) etc.
Q: What is the cutting size of vegetable cubing machine?
A: 3-25MM; One machine will come with one size of bladeset, If you
need various size, you can buy extra bladeset.
Q: Is it hard to change bladeset to get different size cube?
A: Very easy to change bladeset (2-3 mins), full sets of tools comes
with machine.
Q: Will it damage my materials?
A: NO. Its unique designed sharp three-dimensional bladeset can dice
very perfectly, ensuring the most smooth cutting surface.
Q: Is the machine safe for food production?
A: It's 100% safe for production. Machine body made of food grade part
SUS material, and all components that contact to food are FDA,
HACCP, GMP compliant.
Q: Is the machine easy for operation and cleaning?
A: It is easy to operate and clean. There are few simple buttons for
operate, and spare parts easy to remove for cleaning.
Q: How can I install the machine and how to use the onion carrot
dicing cutting machine?
A: It is packed in a whole one, you just need to connect the electiricity
as per the manual. There is guidance along with packaging box to
help you get the machine work.
Q: What is guarantee time of onion carrot cutting dicing machine?
A: 1 year warranty time. After warranty, all spare parts offered at
production cost rate to ensure a low maintenance cost.
Q: Do you accept customized production line?
A: YES! We can help design and produce machines as per your special
needs (according to your material types, hourly output, processing
steps etc. )
Q: What is your machines applied to?
A: Food processing factory, salad processing industry, food ceterering
business, fresh produce wholesalers, ready meal& fast food,
restaurant/commercial kitchen canteens, frozen food industry, fresh
cut products and many more.
If you have any questions, please feel free to contact me!
